R150E-CPU using Profinet to Codesys V3.5

Knowledge Base: Examples Communications
1

I’m trying to connect my Delta R150E-CPU using Profinet to a Codesys SoftPLC running V3.5. When I open up some of the configuration screens in CPU module, I select Profinet. When I change to the Variable Table, I still get F56:0 which looks like a AB SLC504 register designation, F56:0-F59:255.
The CPU configuration shows %MD42.0.

Any information would be appreciated.

2

Hi Tom,

Thanks for posting your question. For general product use inquires like this, it can work well to message support@deltamotion.com.

I’m guessing you are referring to the displayed address in RMCTools. On the RMC150, many registers can be accessed via different communication protocols. So we allow selecting which register display format to use. You can change the format by right-clicking on Register→Address Format→Select desired format.

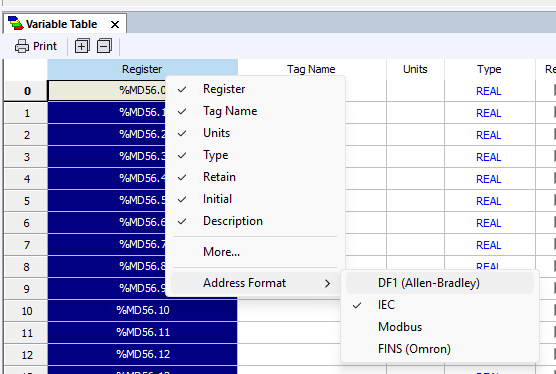

image556×374 15.2 KB

Thanks,

Paul
